E5210 & E5230 Exit Device Parts & Nomenclature

E5210 Rim Device

Narrow Style

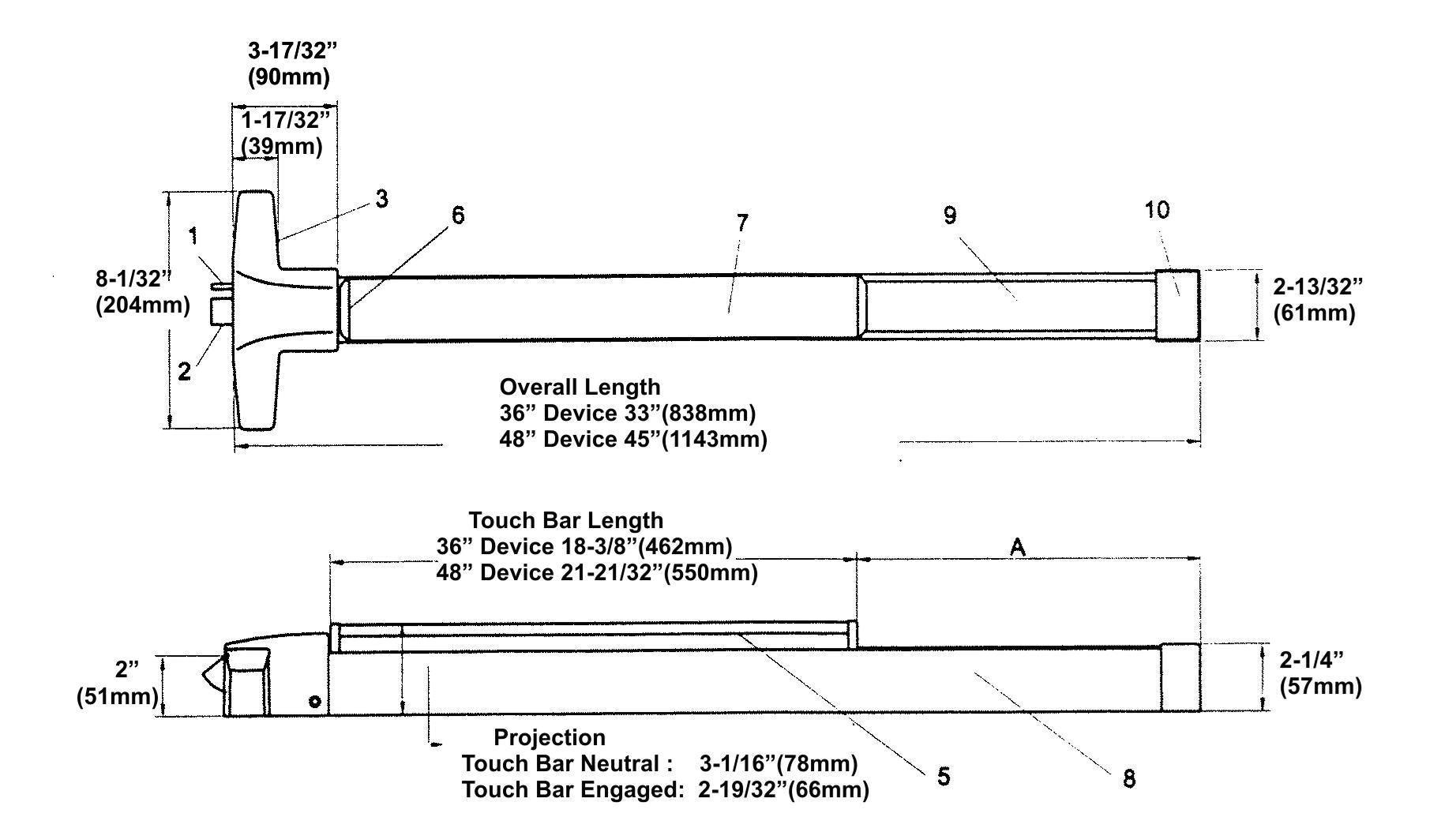

E5210 Rim Device Nomenclature

E5230 Series Surface Vertical Rod

Narrow Style

  1. Auxiliary Dead Latch
  2. Stainless Steel Latch Bolt, 3/4"(19mm) Throw
  3. Head Cover
  4. Chassis
  5. Touch Bar
  6. Touch Bar End Cap
  7. Touch Bar Trim
  8. Device Body
  9. Rear Cover
  10. End Cap
  11. Top Latch, 5/8" (16mm) Throw
  12. Latch Assembly Cover
  13. Top Vertical Rod & Rod Guide
  14. Bottom Vertical Rod
  15. End Cap Bracket
  16. Bottom Latch, 5/8" (16mm) throw

Important Notes:

  • Brookline Standard SVR & CVR Will Accommodate a 7'(2134mm) Door
  • Rod Extensions Are Included in Every Device to Accommodate 8'(2438mm) Doors

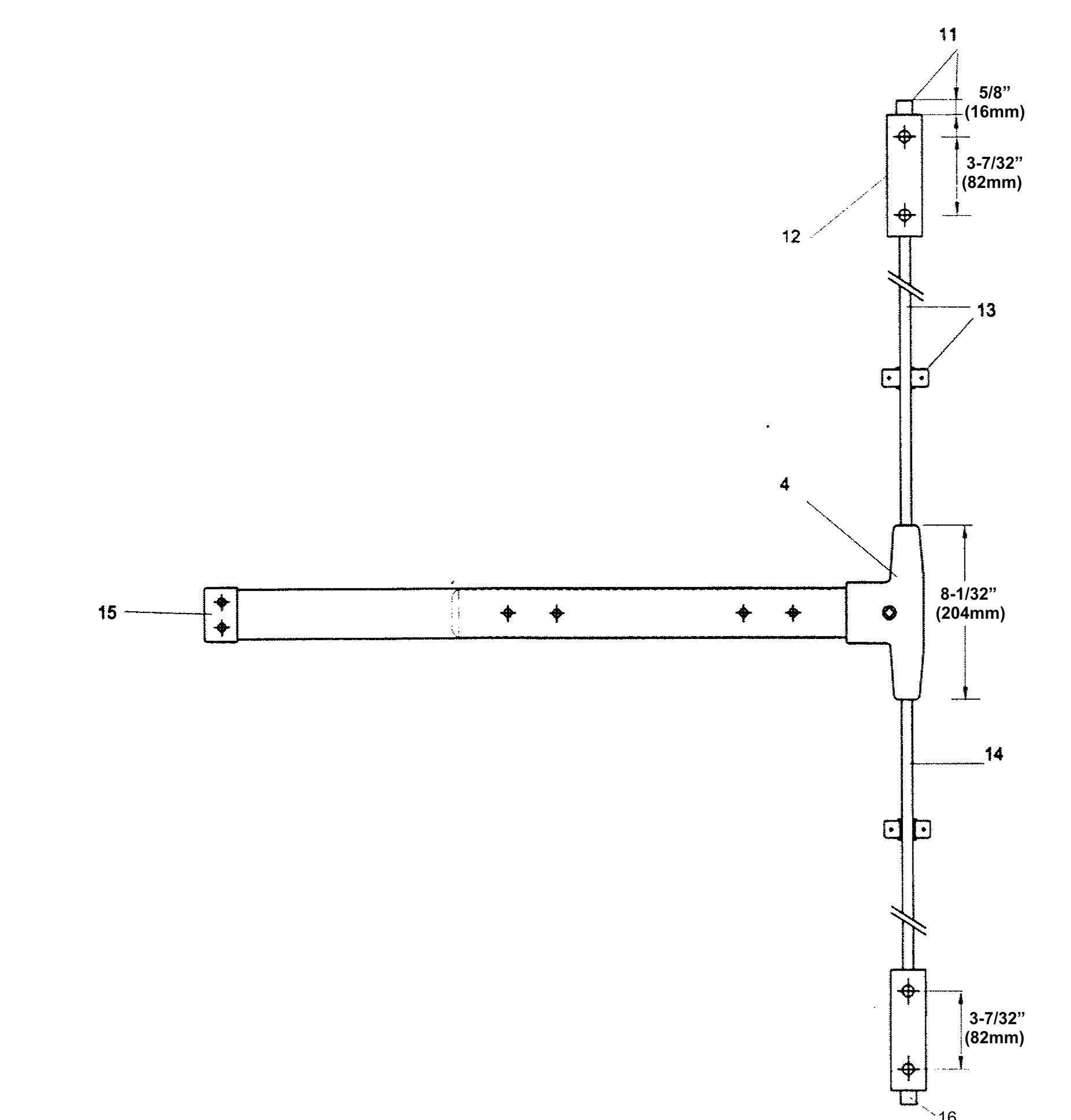

E5230 Surface Vertical Rod Nomenclature
