Pivots - 1-1/2 Offset Pivots

1-1/2" OFFSET PIVOTS

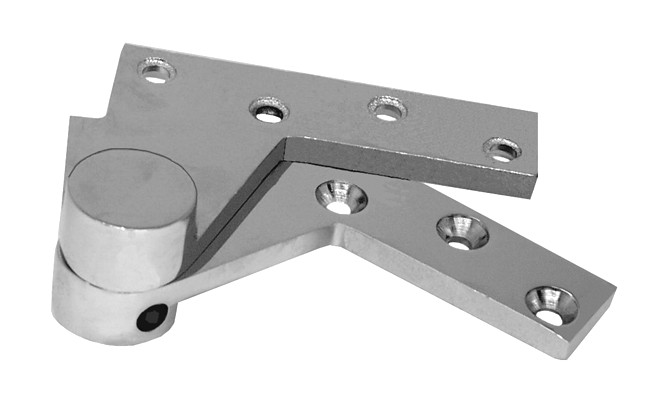

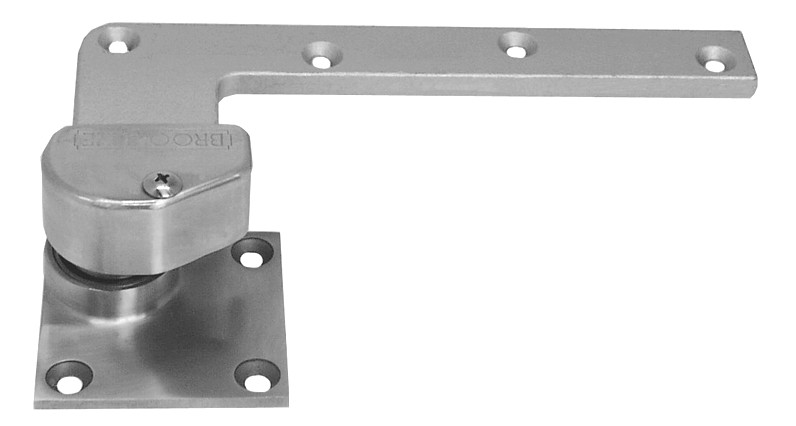

1238S

Offset Pivot Set (Handed)

Exterior doors
Width to 3'6" (1067)mm
Height to 7'0" (2134)mm
Interior doors
Width to 4'0" (1220)mm
Height to 8'6" (2590)mm
Weight to 350lbs (159)kg

  • Bottom pivot mounts directly to floor
  • Available for fire door assemblies up to three hours (Prefix with "F")
  • Intermediate pivot 1258 required for fire application
  • 1 1/2" offset (38.1)mm
  • Investment cast stainless steel, bearings top and bottom pivot
  • Available in standard architectural finishes
  • Extended spindles in 1/2"(12.7 mm) increments up to 2"(50.8mm)
  • Intermediate pivot 1258 suggested

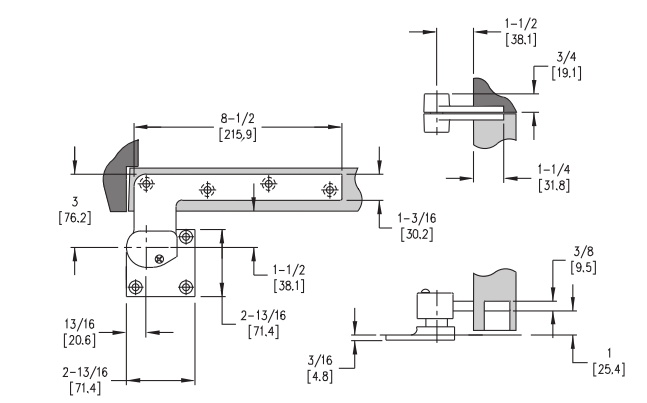

1238S schematic
1238S 1238S

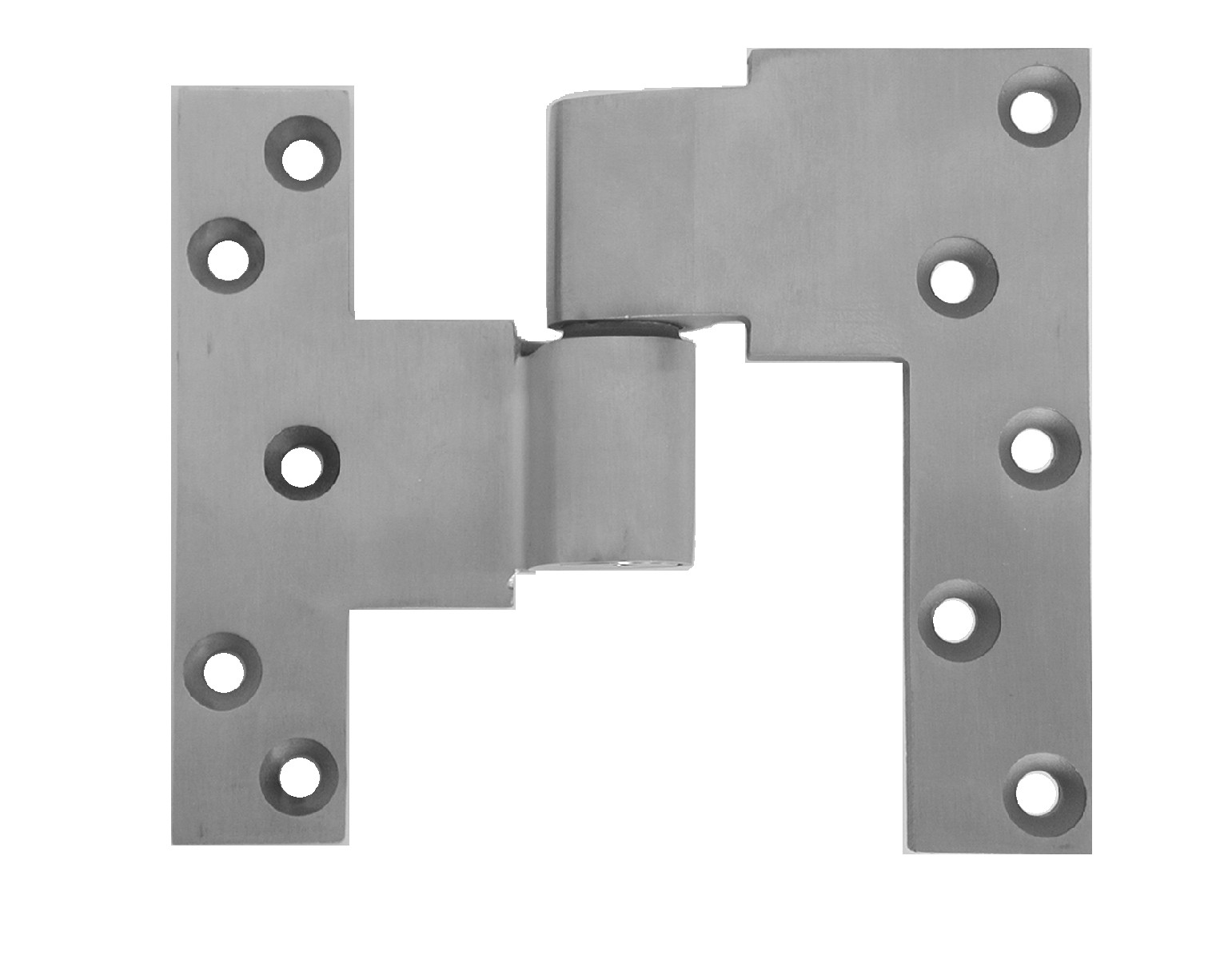

1258

Intermediate Pivot (Handed)

Technical Note: On labeled doors NFPA 80 requires one intermediate pivot per door height up to 90" (2286)mm and two intermediate pivots for doors from 90"(2286)mm to 120" (3048)mm

  • Maintains align of the door
  • 1 1/2" offset (38.1mm)
  • Investment cast stainless steel
  • Needle Bearings
  • Available in standard architectural finishes
  • Recommended for use with 1238S

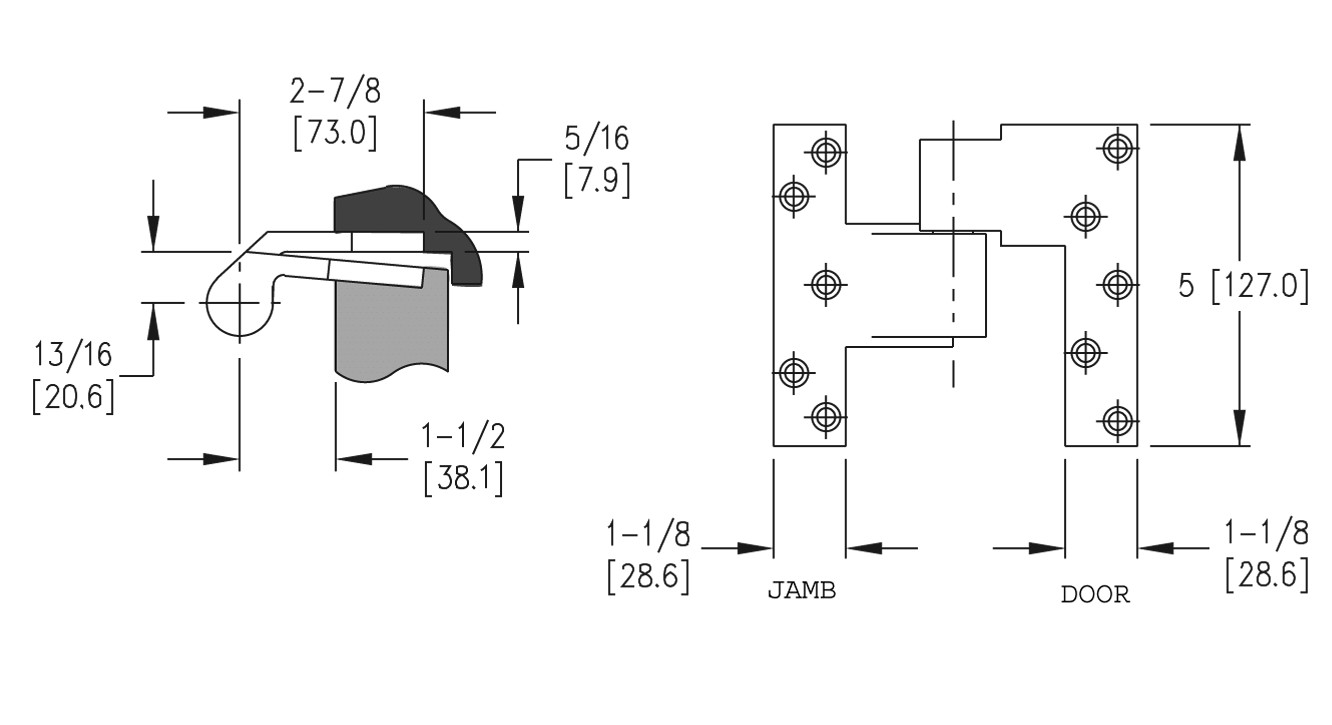

1258 schematic
1258
