Pivots - 3/4 Offset Pivots

3/4" OFFSET PIVOTS

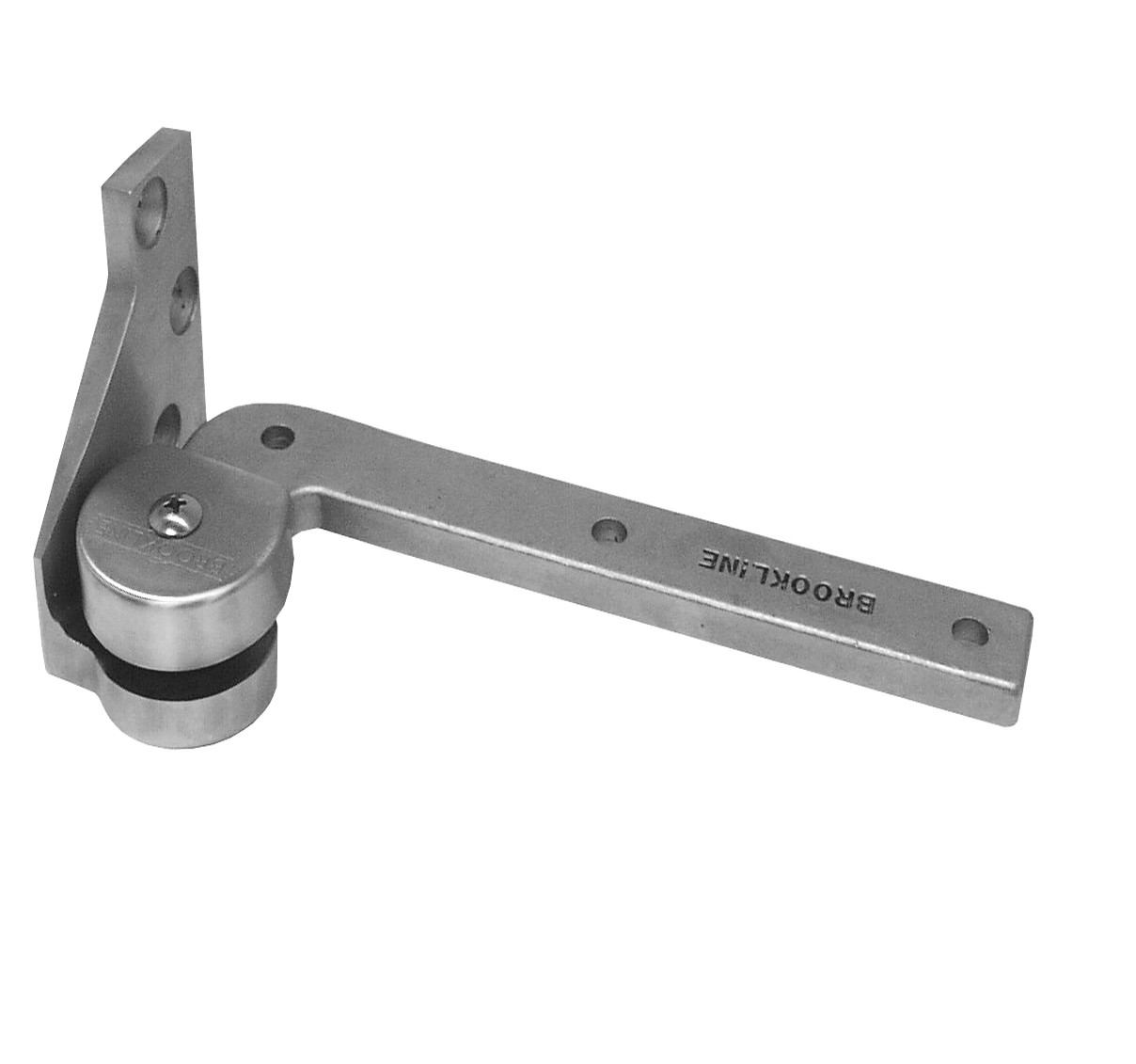

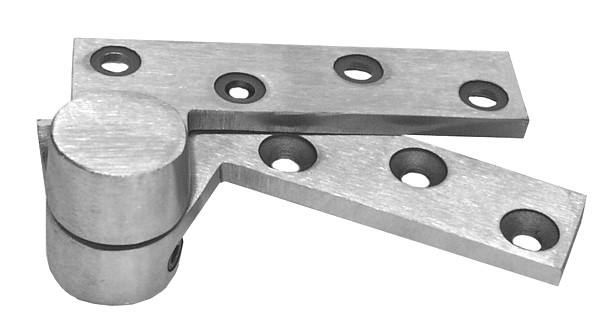

1231S

Offset Pivot Set (Handed)

For Interior Doors
Width to 3'8" (1118)mm
Height to 8'0" (2438)mm
Weight to 250lbs (113)kg

  • Bottom pivot mortised into jamb
  • Investment cast stainless steel, bearing top and bottom pivot
  • Extended spindles in 1/2"(12.7 mm) increments up to 2"(50.8mm)
  • Available in standard architectural finishes
  • Intermediate pivot 1251 suggested

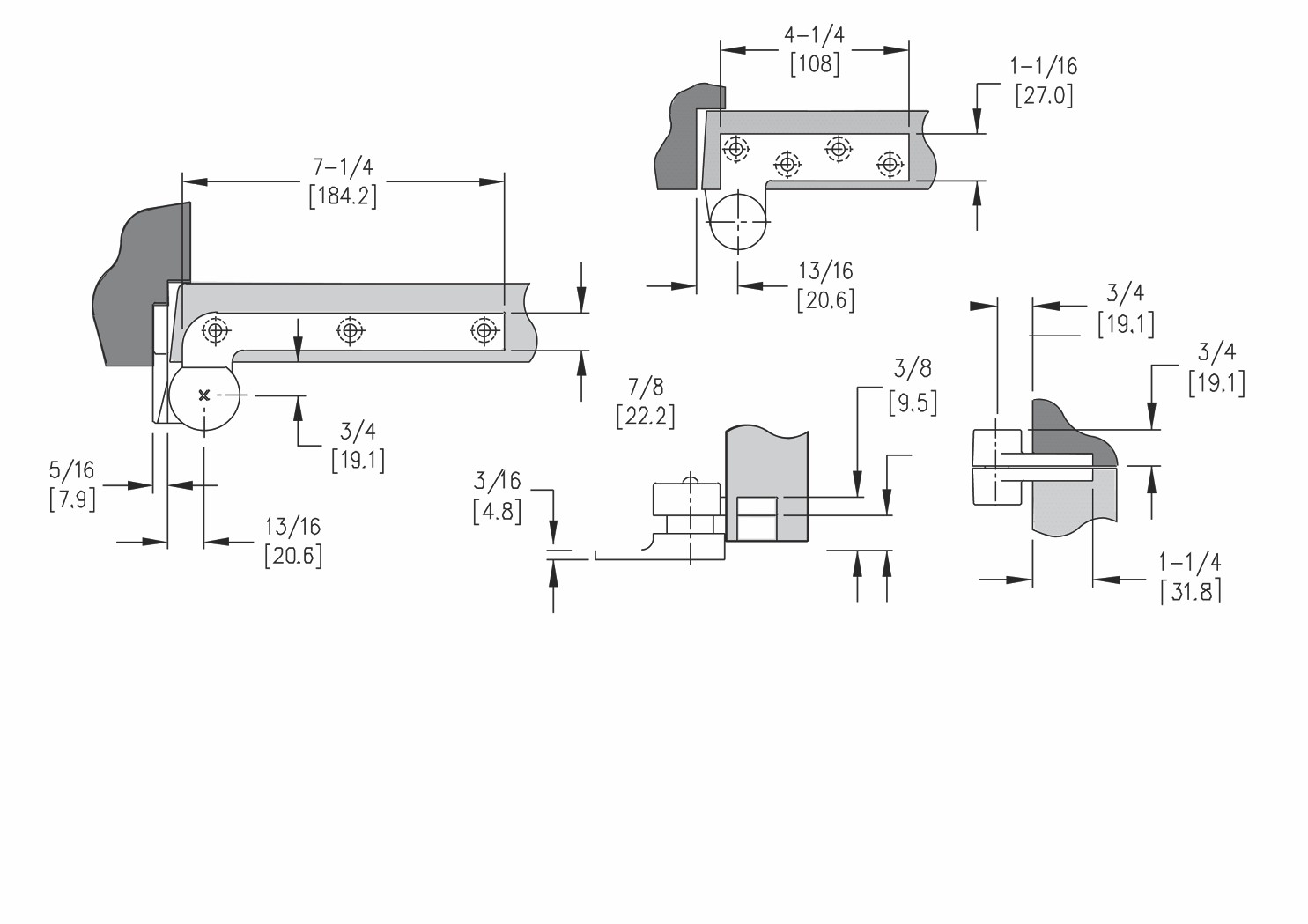

1231S schematic
1231S 1231S

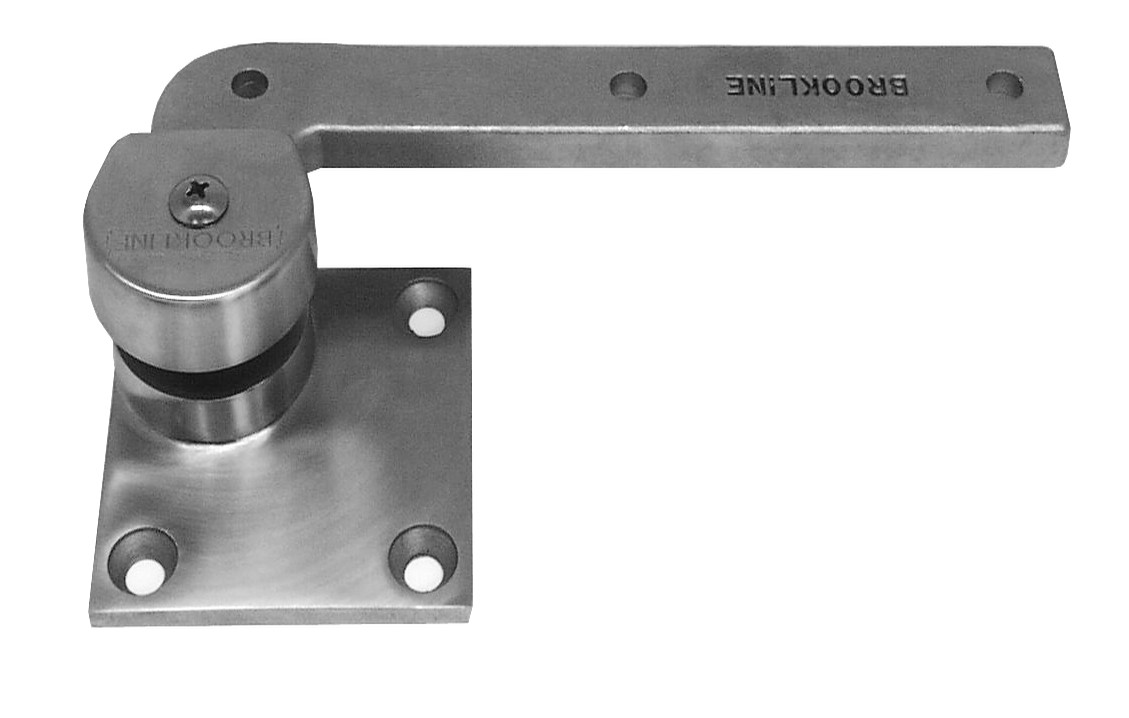

1233S

Offset Pivot Set (Handed)

For Interior Doors
Width to 4'0" (1220)mm
Height to 8'0" (2440)mm
Weight to 250lbs (113)kg

  • Bottom pivot mounts directly to floor
  • Intermediate pivot required for fire application
  • Investment cast stainless steel, bearings top and bottom pivot
  • Available in standard architectural finishes
  • Extended spindles in 1/2"(12.7)mm increments up to 2"(50.8)mm
  • Intermediate pivot 1251 suggested

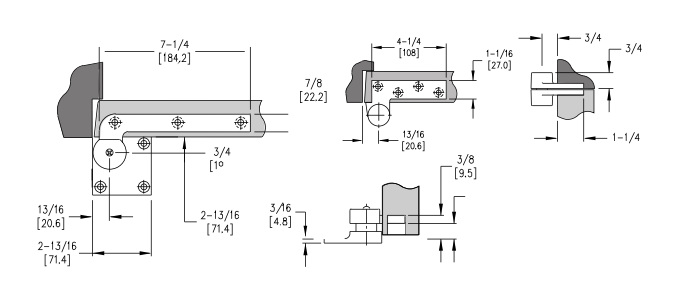

1233S schematic
1233S 1233S

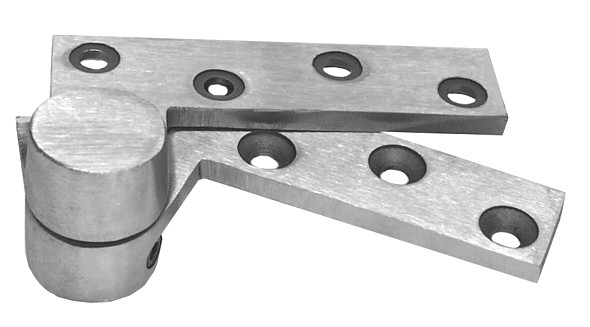

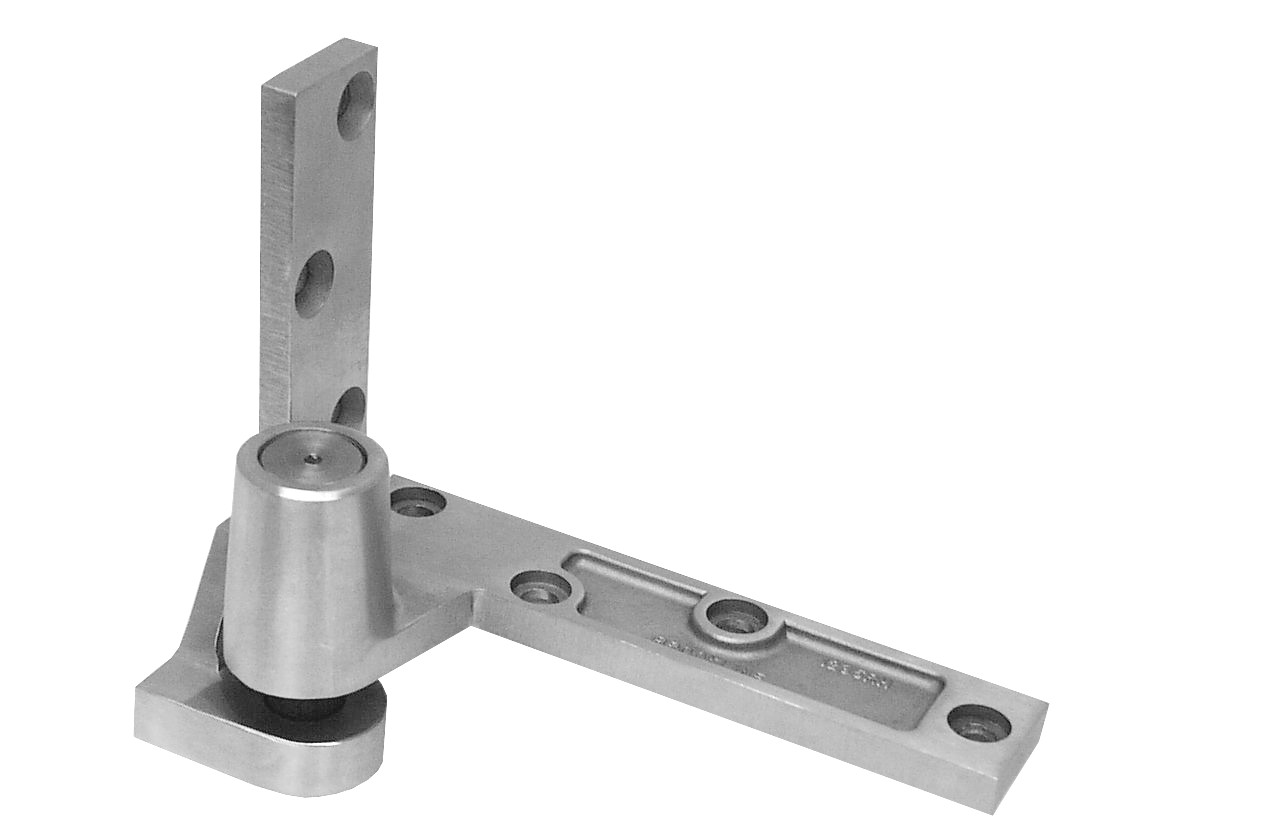

1235S

Offset Pivot Set (Handed)

Exterior or Interior Doors
Width to 4'0" (1219)mm
Height to 8'0" (2438)mm
Weight to 450lbs (204)kg

  • Bottom pivot mortised into jamb
  • Bottom pivot has 3/16"(4.8)mm vertical adjustment
  • Investment cast stainless steel, bearings top and bottom pivot
  • Available in standard architectural finishes
  • Intermediate pivot 1251 suggested

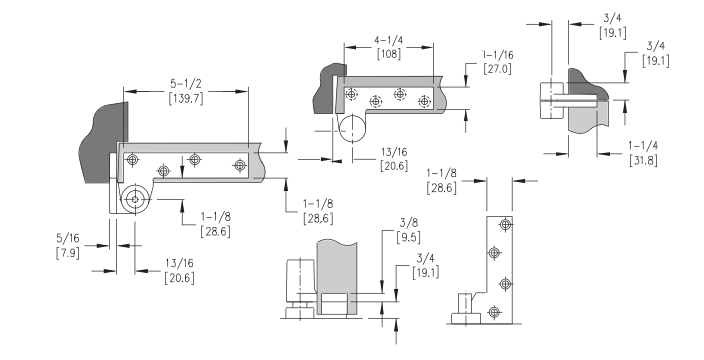

1235S schematic
1235S 1235S

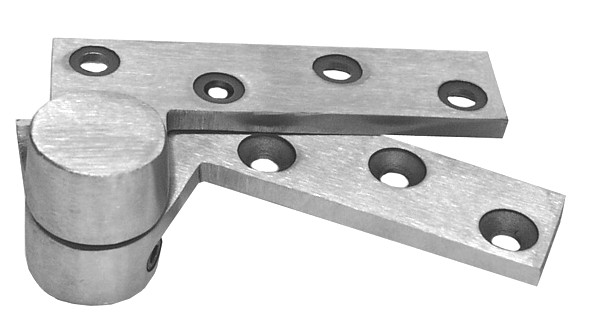

1237S

Offset Pivot Set (Handed)

Exterior doors
Width to 3'6" (1067)mm
Height to 7'0" (2134)mm
Interior doors
Width to 4'0" (1220)mm
Height to 8'6" (2590)mm
Weight to 600lbs (272kg)

  • Bottom pivot mounts directly to floor
  • Intermediate pivot 1257 required for fire application
  • Investment cast stainless steel
  • Available in standard architectural finishes
  • Extended spindles in 1/2"(12.7mm) increments up to 2"(50.8mm)
  • Intermediate pivot 1251 suggested

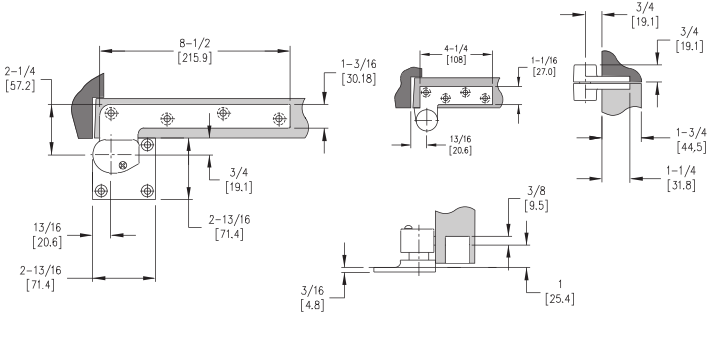

1237S schematic
1237S 1237S
