Pivots - Center Hung Pivot Sets

CENTER HUNG PIVOT SETS

1211S

Center Hung Pivot Set

Interior Doors
Width to 3'6"(1067mm)
Height to 8'6"(2590mm)
Weight to 200 lbs (91kg)

  • Bottom pivot mortise into side jamb
  • Bearings top pivot and bottom arm
  • Double acting
  • Investment cast stainless steel
  • Available in standard architectural finishes

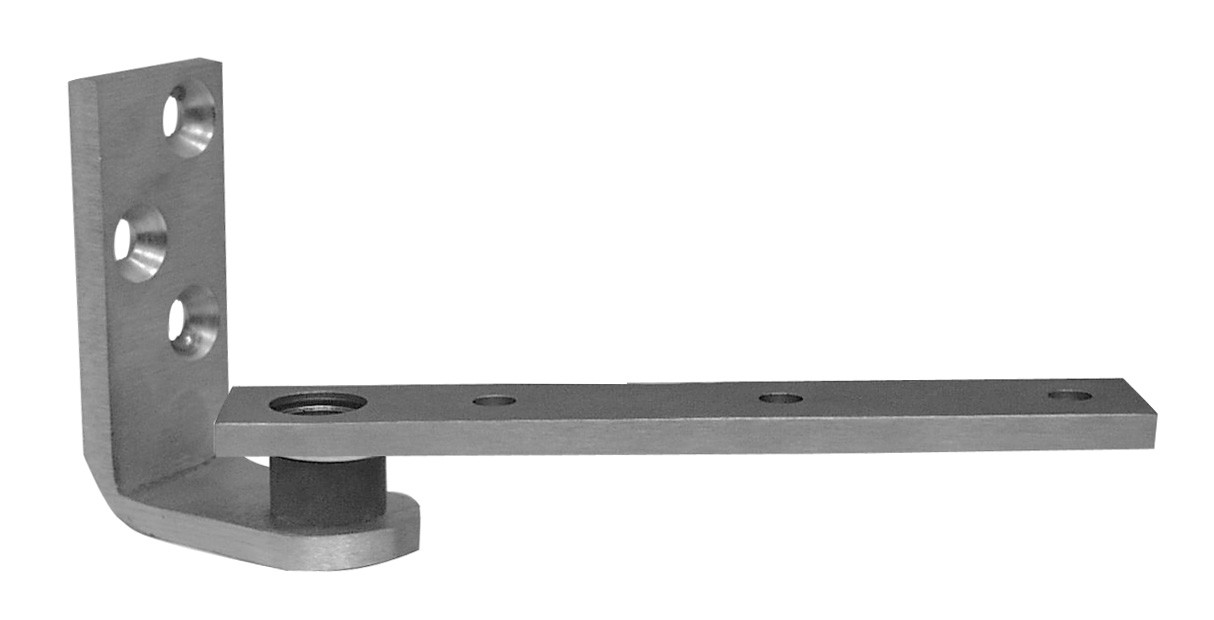

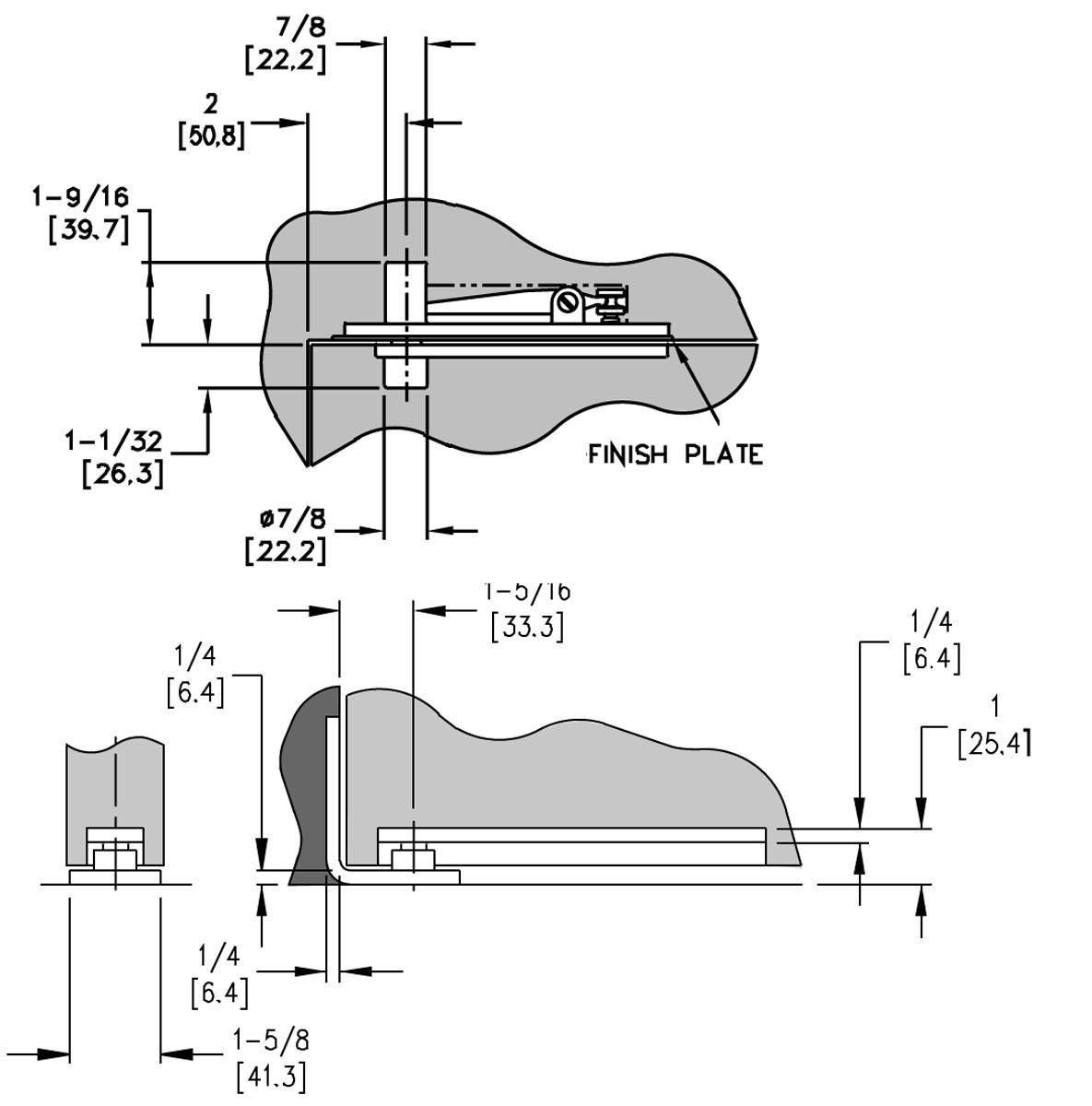

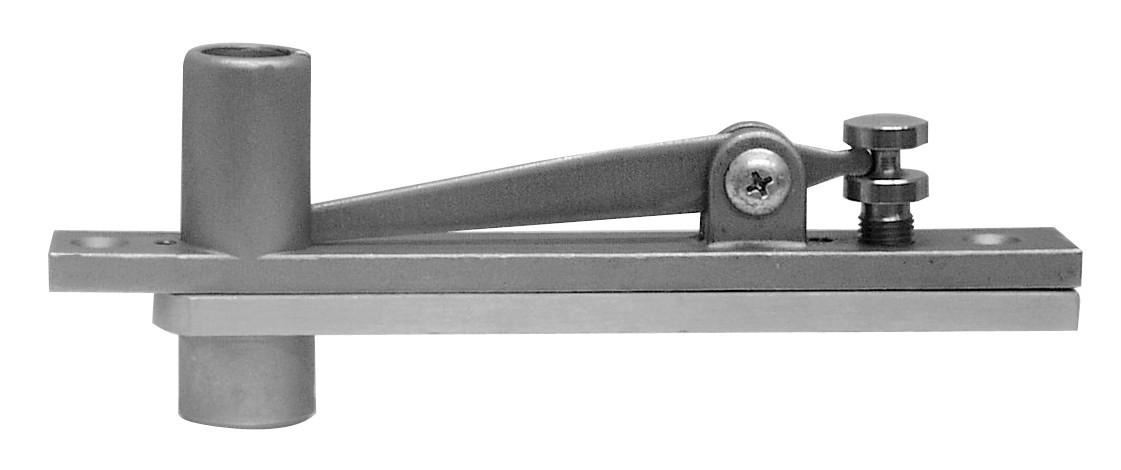

1211S schematic 1211S 1211S

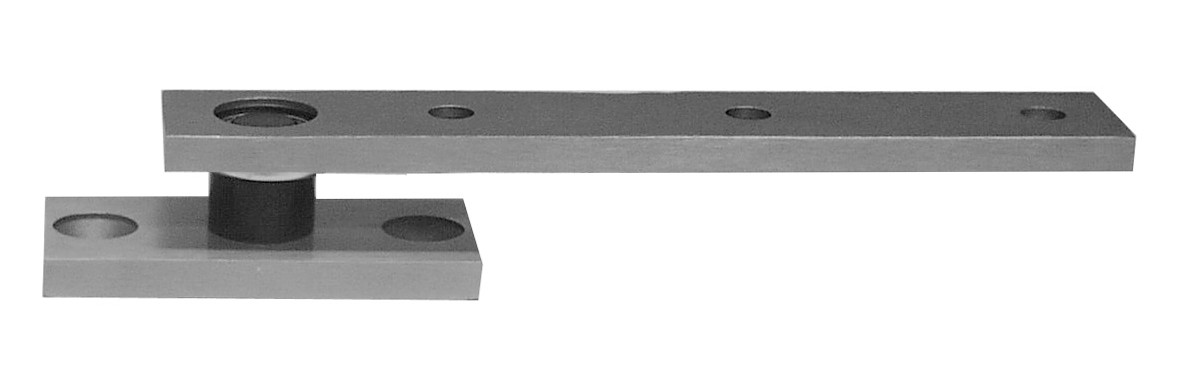

1212S

Center Hung Pivot Set

Interior Doors
Width to 3'6" (1067mm)
Height to 8'6"(2590mm)
Weight to 250 lbs (113kg)

  • Bottom pivot mounts directly to floor
  • Bearings top pivot and bottom arm
  • Double acting
  • Investment cast stainless steel
  • Available in standard architectural finishes

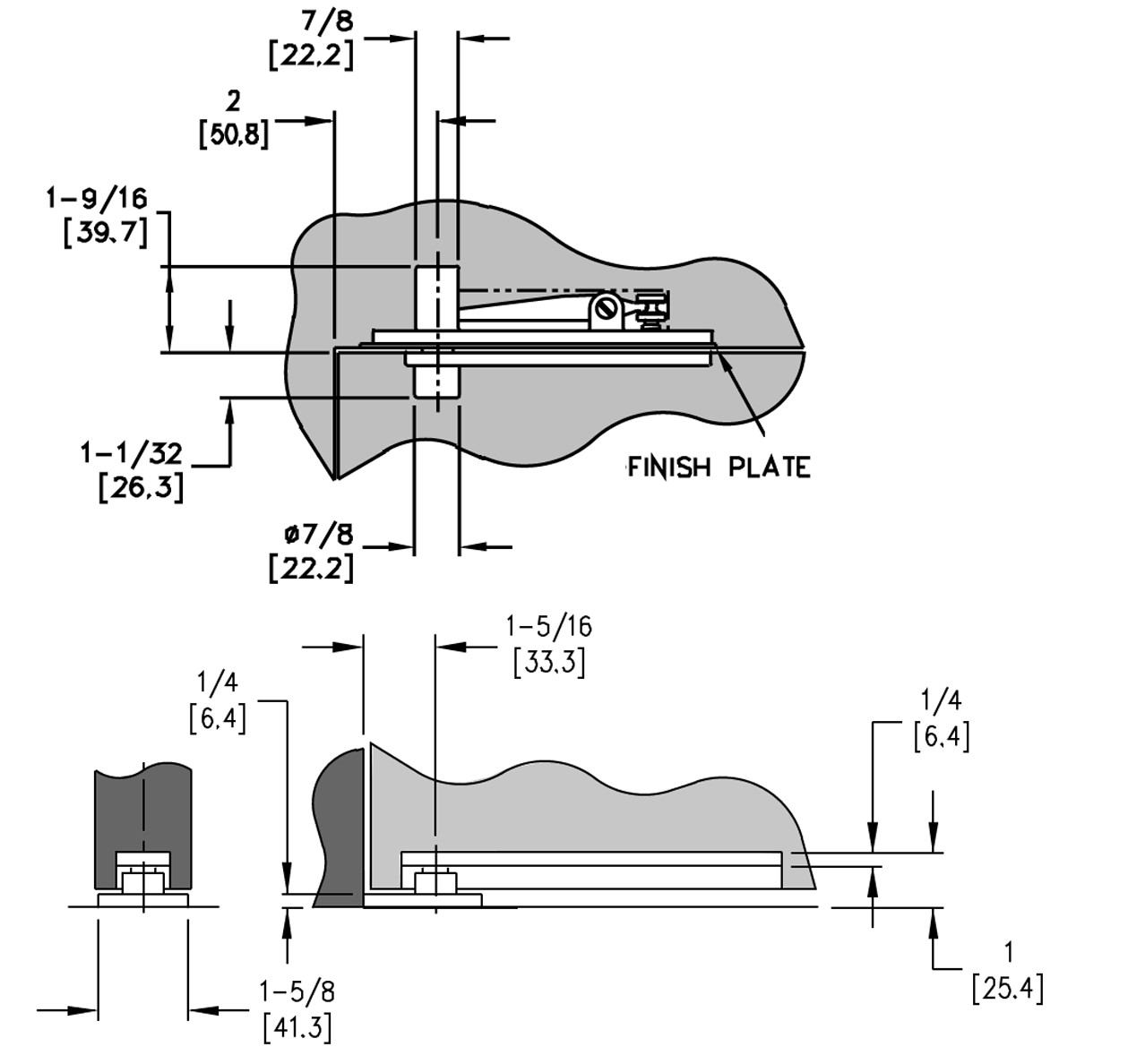

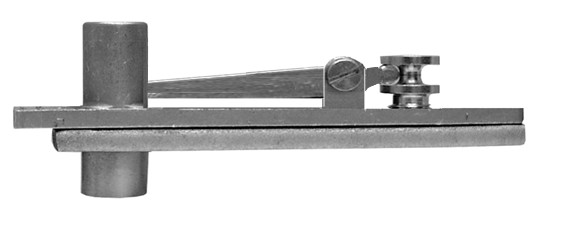

1212S schematic 1212S 1212S

1213S

Center Hung Pivot Set

Exterior or Interior Doors
Width to 4' (1220mm)
Height to 8'6"(2590mm)
Weight to 500 lbs (227kg)

  • Bottom pivot mounts directly to floor
  • Bearings top pivot and bottom arm
  • Bottom pivot bearing sealed for protection against weather and debris
  • Top pivot spindle adjustable up to 1" (25.4mm)
  • Investment cast stainless steel
  • Available in standard architectural finishes

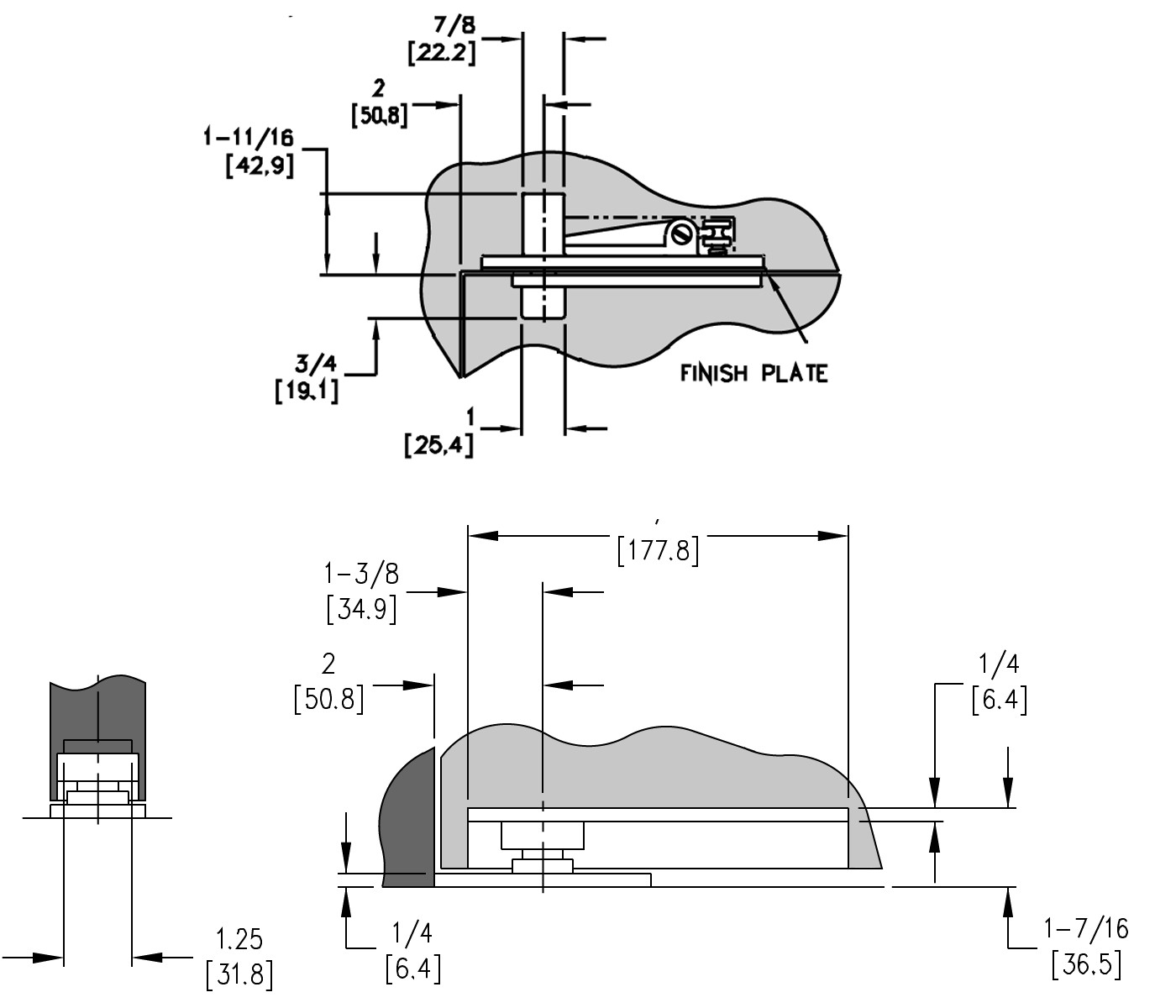

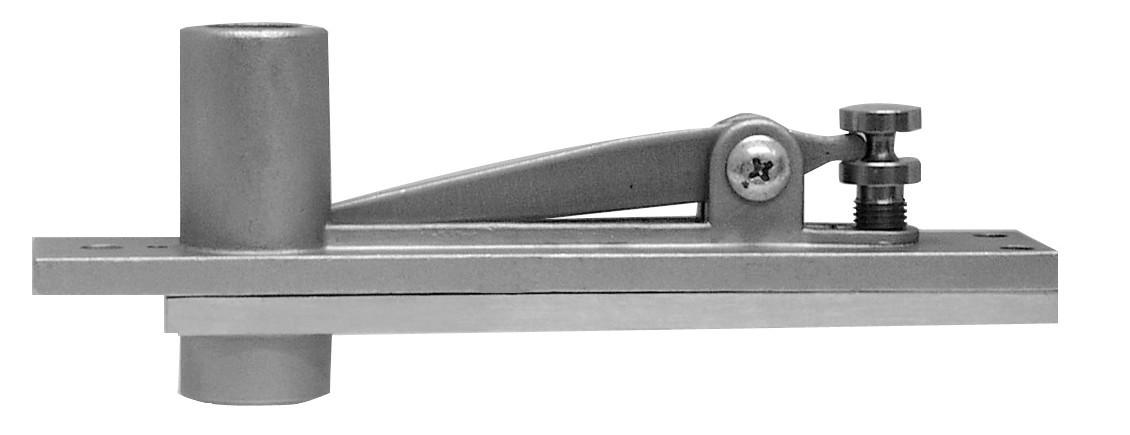

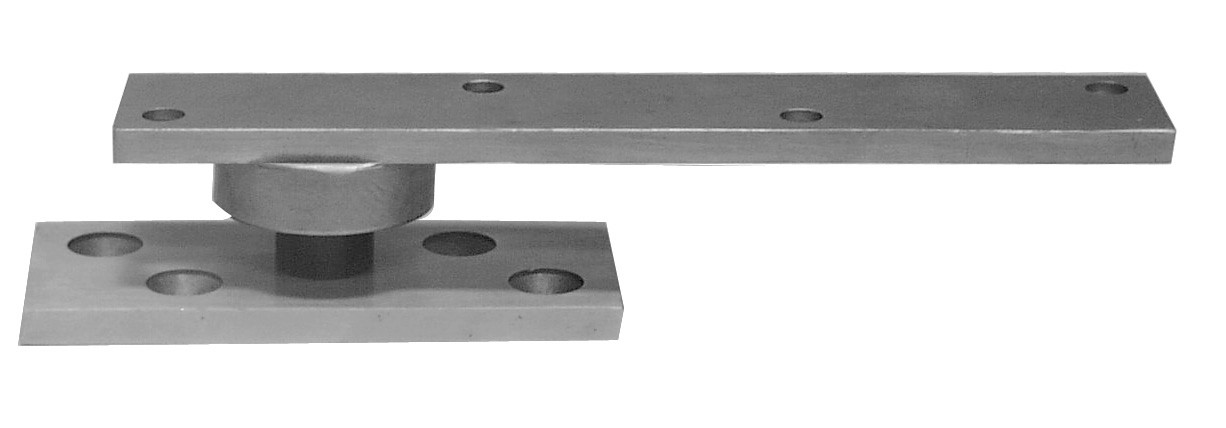

1213S schematic 1213S 1213S
