Pivots - Intermediate Pivots

INTERMEDIATE PIVOTS

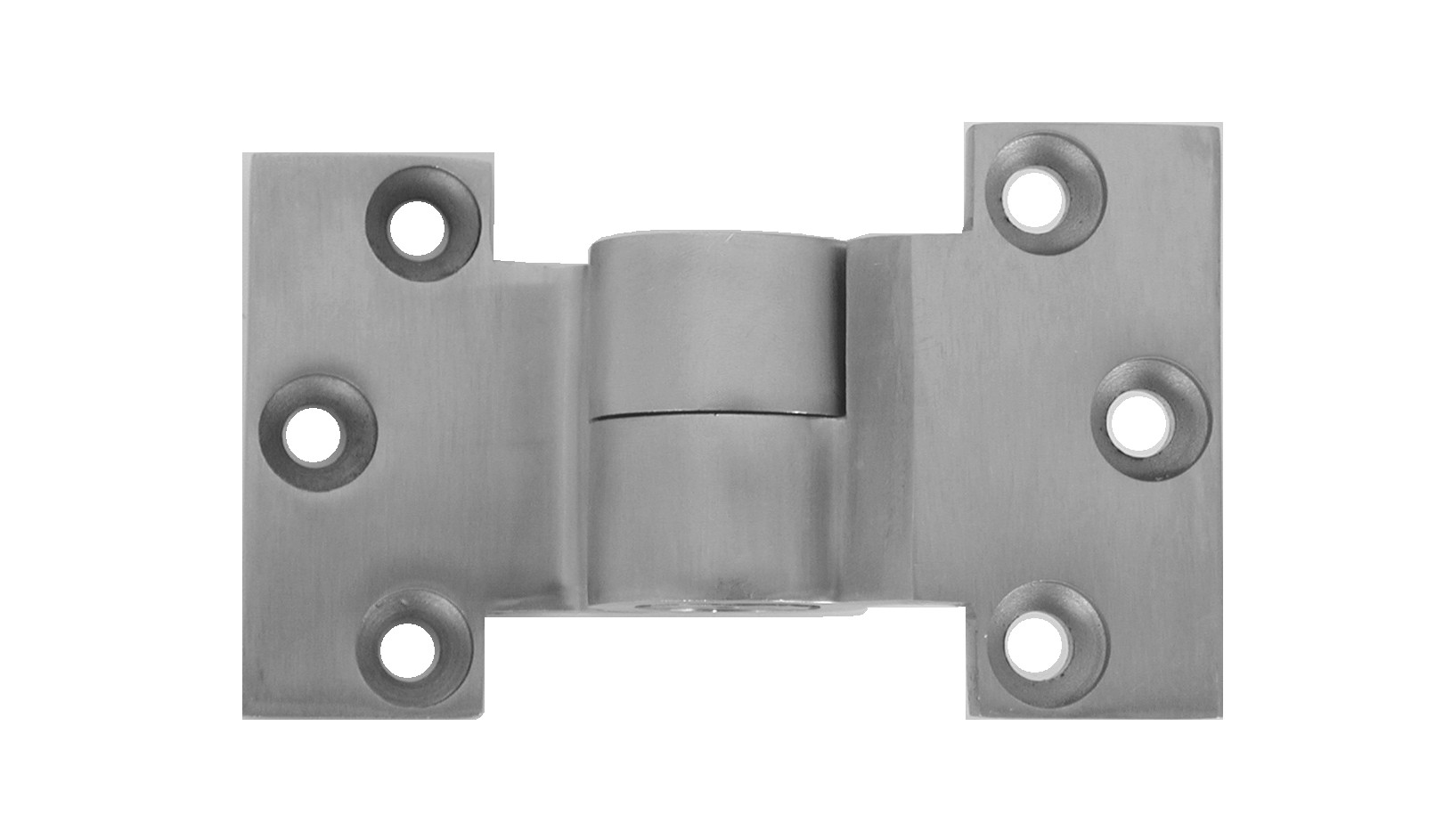

1251

Intermediate Offset Pivot

Full Mortise Handed

  • Leaf Height of 2 1/2" (63.5mm) with no vertical load capacity
  • Maintains alignment of the door
  • Investment cast stainless steel
  • Needle Bearings
  • Available in standard architectural finishes
  • Suggested for use with 1231S or 1238S

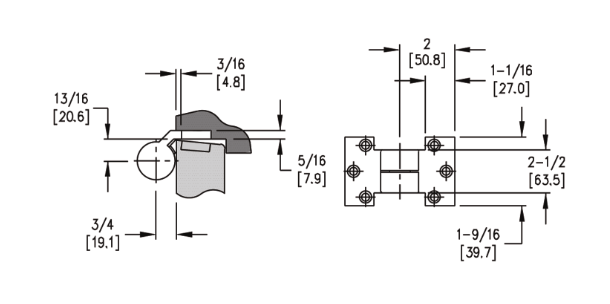

1251 schematic 1251

1257

Intermediate Offset Pivot

Full Mortise (Handed)

Technical Note: On labeled door NFPA 80 requires one intermediate pivot per door height up to 90" (2286)mm and two intermediate pivots for doors from 90"(2286)mm to 120" (3048)mm

  • Maintains alignment of the door
  • 3/4" offset (38.1mm)
  • Investment cast stainless steel
  • Needle Bearings
  • Available in standard architectural finishes
  • Suggested for use with 1235S or 1237S

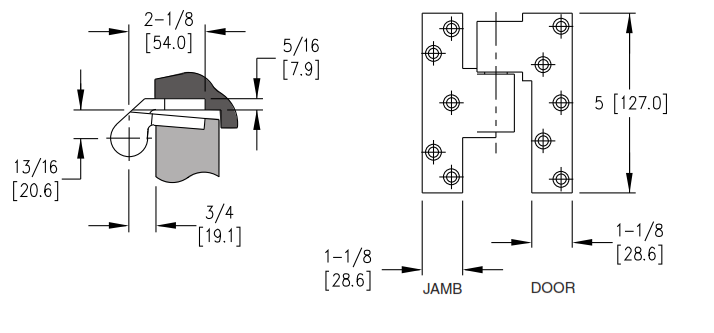

1257 schematic 1257

1258

Intermediate Pivot (Handed)

Technical Note: On labeled doors NFPA 80 requires one intermediate pivot per door height up to 90" (2286)mm and two intermediate pivots for doors from 90"(2286)mm to 120" (3048)mm

  • Maintains alignment of the door
  • 1 1/2" offset (38.1mm)
  • Investment cast stainless steel
  • Needle Bearings
  • Available in standard architectural finishes
  • Intermediate pivot 1258 suggested
1258 schematic 1258
